UPVC 75- 250mm Pvc Pipe Extrusion Line Machine With 80/156 Extruder

UPVC Pipe 75- 250mm Pipe Extrusion Line Machine with 80/156 Extruder

INTRODUCTION

Langbo machinery has worked in the plastic extrusion machine field over 15 years. We always design the machine tailed to customers' demand. Considering all the details of the extrusion line, so our UPVC pipe line can produce best quality pipe and has much longer working lifetime. Our extrusion line adopts Siemens-beide motor power with PLC control touch screen. The screw and barrel is Chinese famous brand. All the electrical parts are Siemens or Schnider. The vacuum tank is 6 meters length with true SUS304. The haul-off machine is three caterpillar haul-off unit. The cutter is planetary cutting method.If you are interested in the pvc pipe machine, pls contact me. I will give you a bottom and satisfied price.

TECHNICAL PARAMETER

THE PROCESS FLOW OF THIS LINE AS BELOW

PVC powder + additive --- mixing---material feeder---twin screw extruder---mould and calibrator---vacuum forming machine---spraying cooling machine---haul-off machine---cutting machine---discharge rack or pipe belling machine.

The screw of extruder has advanced design, which provide powerful safeguard for the PVC plasticization, and the Siemens PLC control system make more convinient operation. The degassing system will ensure the quality of final PVC pipes.

The tank body of vacuum calibration and cooling units adopt stainless 304# steel, multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Auto water temperature control system make the machine more intelligent.

For different pipe size, the haul-off machine will adopt two caterpillars, three caterpillars, four caterpillars, six caterpillars are designed for different requirements. Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable in performance

Cutting system adopts no-dust cutter or planetary cutting means; There is dust-collecting system ensures clean working environment.

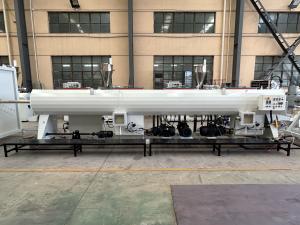

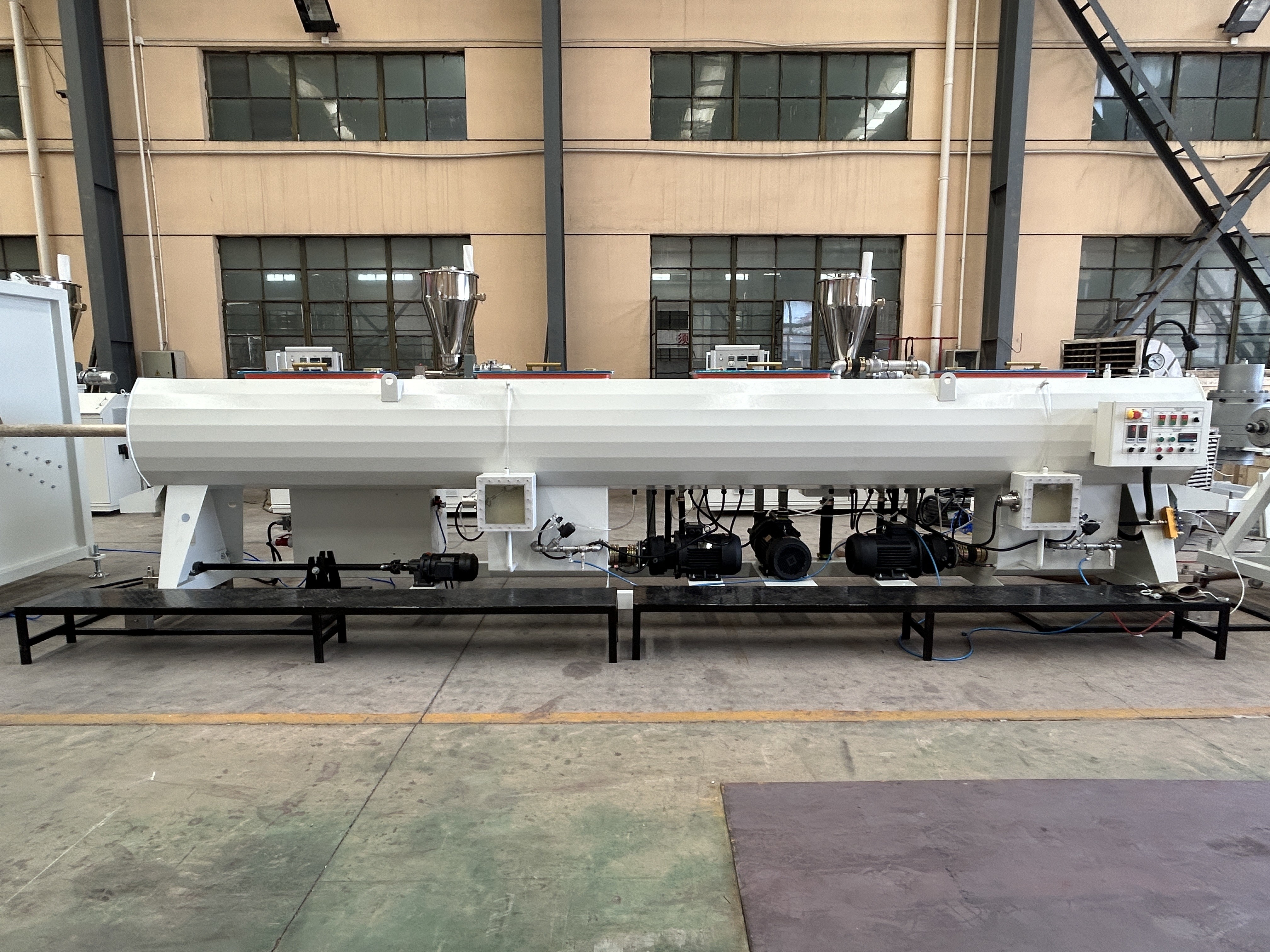

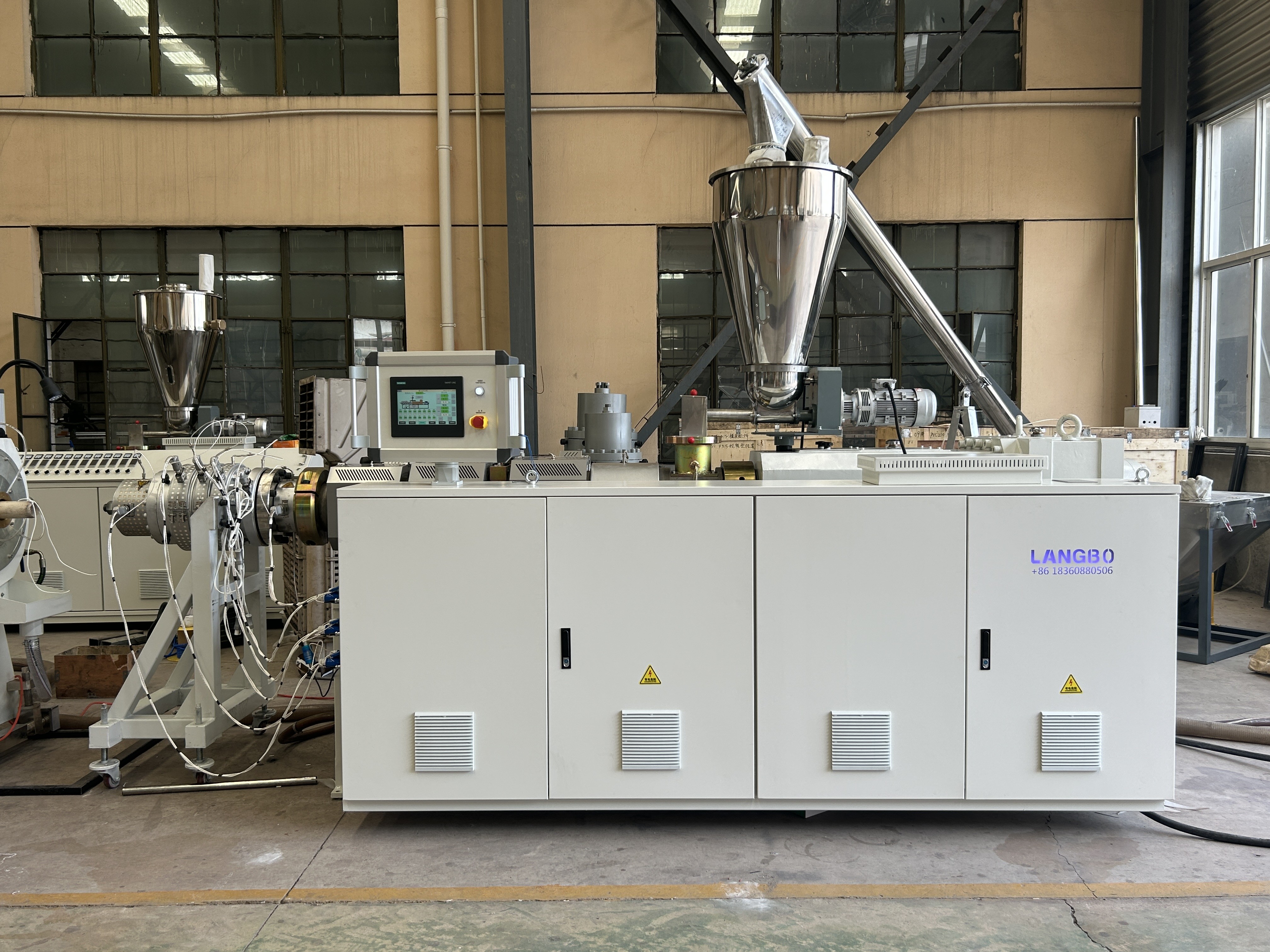

Extruder Vacuum tank

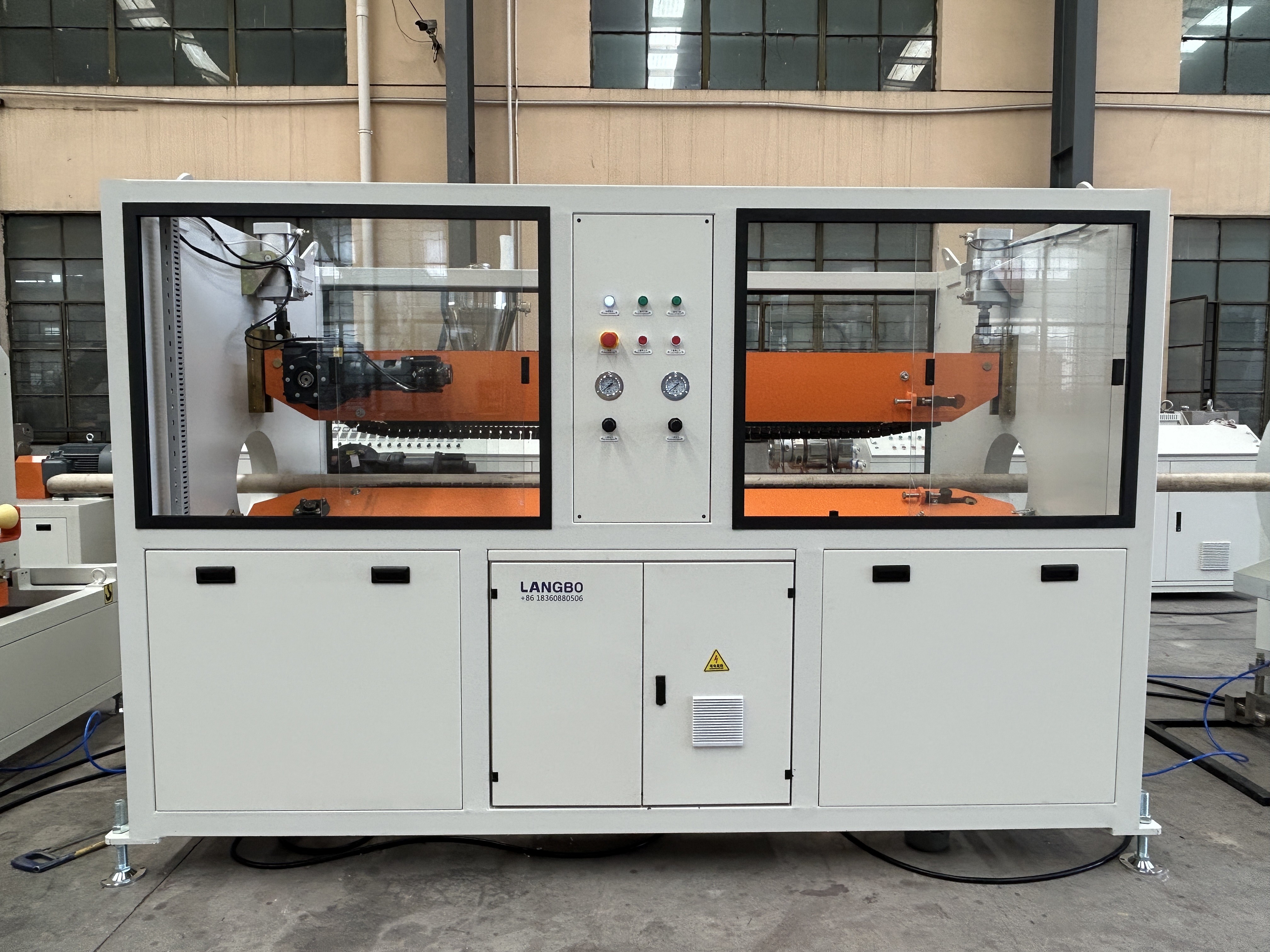

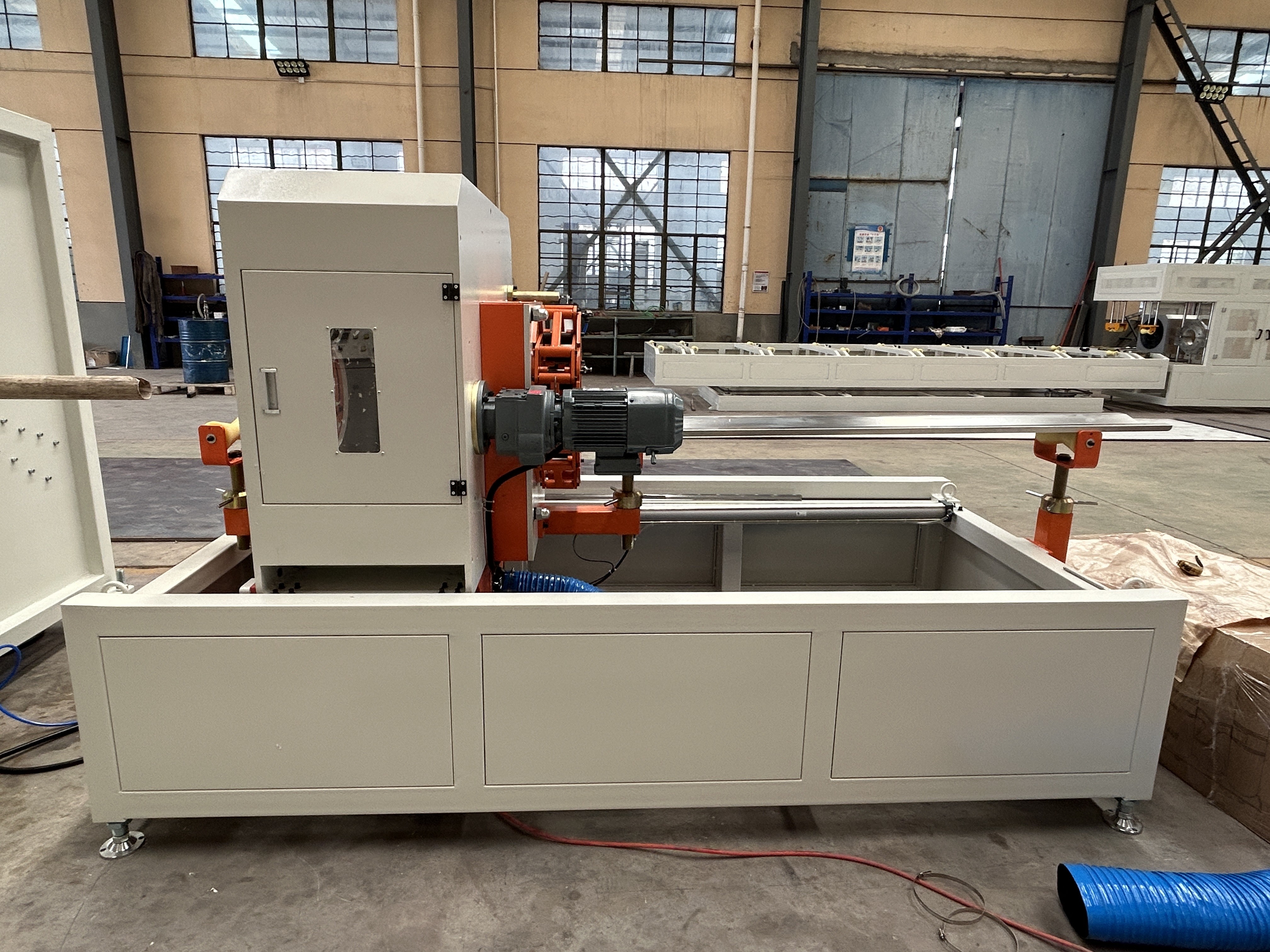

Haul-off machine Cutting machine

TECHNICAL DATA
